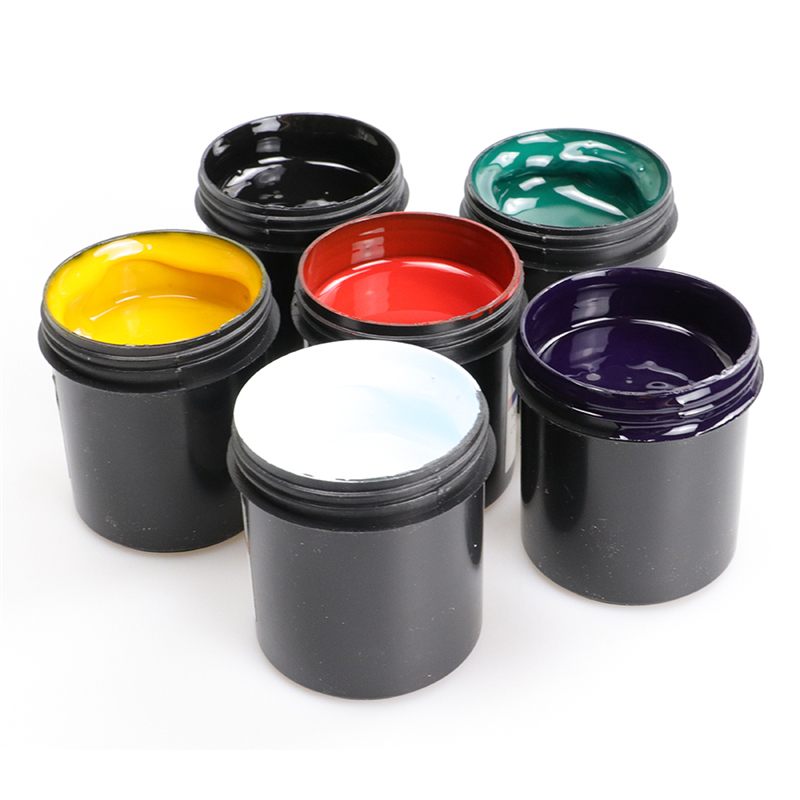

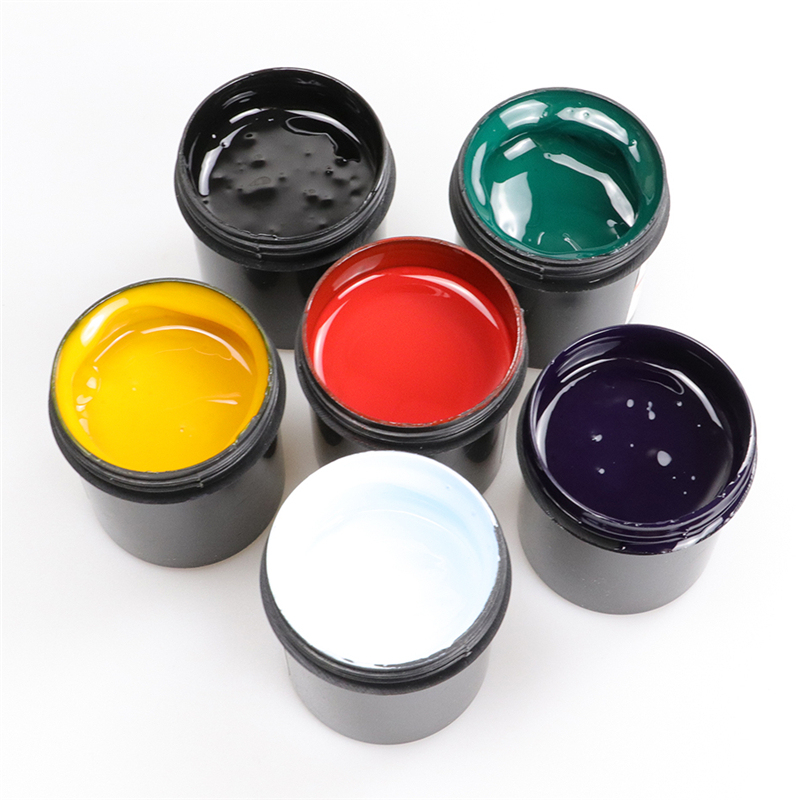

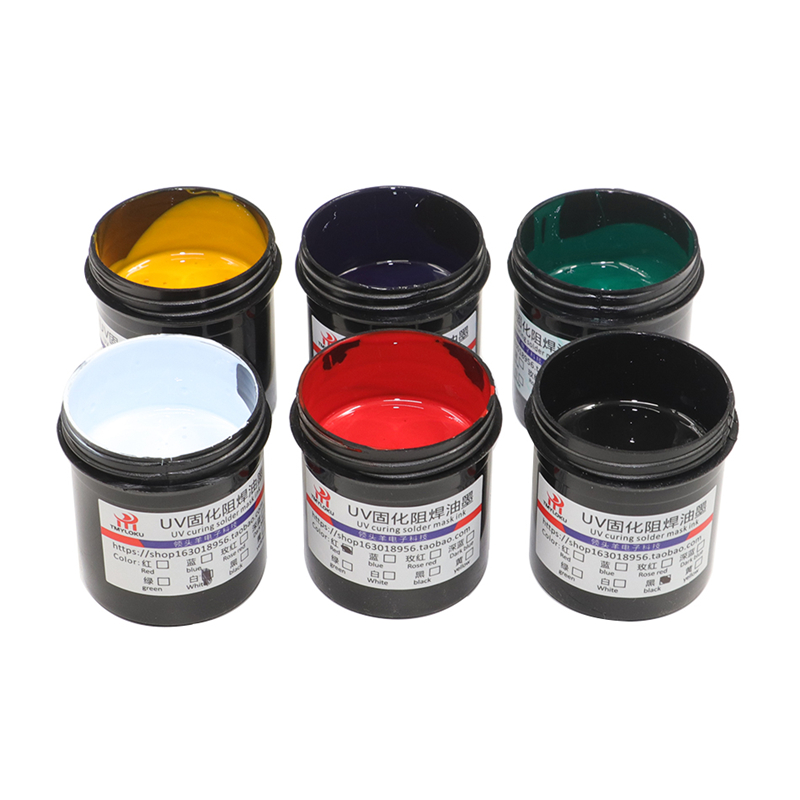

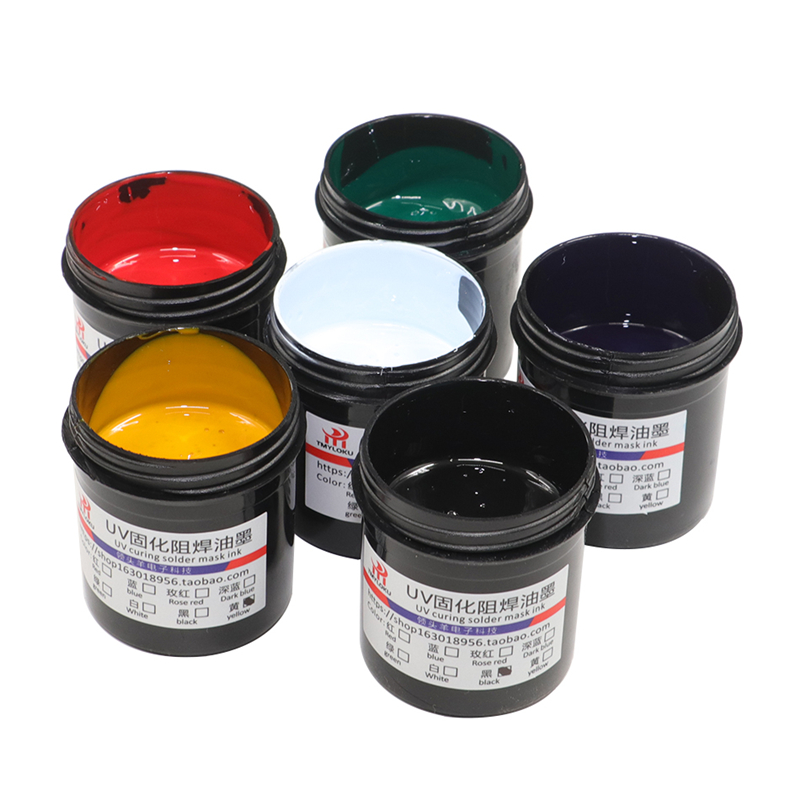

Name of product: solder mask ink
Packing: 100g
Color: red, blue, green, black, white
This UV green oil has fast curing characteristics. It is a PCB board solder mask protective paint, but also an indispensable good helper for maintenance.
How to use UV curing solder mask ink: Firstly screen printing (the pad is inkless when printing). after printing, use a UV machine to cure.
How to use UV curing solder mask ink: Firstly screen printing (the pad is inkless when printing). after printing, use a UV machine to cure.
Ultraviolet light curing solder mask ink, good screen performance, fast curing speed, strong adhesion, chemical resistance and insulation, suitable for single-sided circuit board for solder mask.
Viscosity: 25°C 200±50PS with good thixotropic particle size: <15n Curing conditions: UV lamp (ultraviolet lamp, LED ultraviolet lamp) curing, such as no ultraviolet lamp can be exposed to the sun Adhesion: 100/100 Hardness: >5H
Soldering resistance: 260°C±5°C for 10 seconds×3 times
Solvent resistance: Trichloroethane boiled for 2 minutes without shedding
Insulation resistance: normal 1×1013 or more, 40°CRH95% 1×1012 after 72 hours
Dielectric strength: >500V/mil
Storage: temperature 22±2 °C, humidity 55±5%RH
Note: Stir well before use
Special attention: This ink should not be diluted when used
If you are going to DIY, it is recommended to use sun exposure (weather above 30 degrees, 5-30 minutes)
Please use 783/net wash water to clean the screen plate
