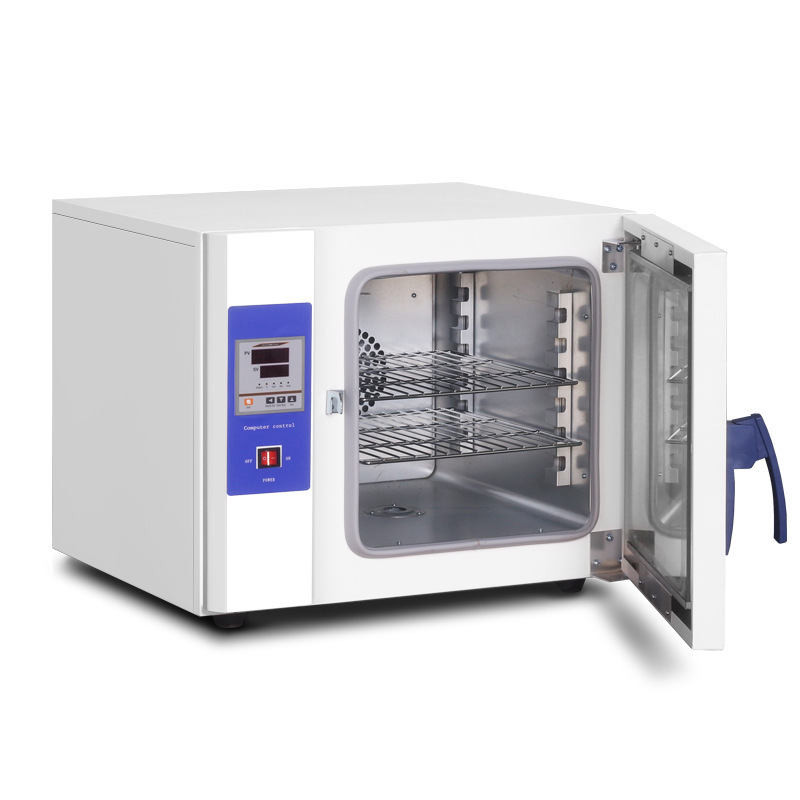

KH bga oven preheating motherboard for laptop repair Electric forced air drying oven
inner size(mm) (H*W*D) 450x450x350
overall dimension(mm) (H*W*D) 630x740x550
power (KW) 1.4
Structure feature：
![]()
Microcomputer intelligent PID display with function of temperature control,timer and over-temperature alarm.
![]()
Low noise fans and air cycling duct, reasonable air duct and circulation system makes stable temperature working environment.
![]()
The shell is made of high quality cold-rolled steel with environmental electrostatic spray treatment,large observation window；
![]()
Two materials of internal chamber:stainless steel and galvanized steel,round corners inner chamber is easy to clean.
![]()
the spaces and quantity of shelves can be adjusted
![]()
High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
![]()
Ergonomic fastening handle, easy to operate and ensure sealing
Full stainless steel version：The shell and chamber are made of high-quality stainless steel plate, which has the characteristics of acid-base and corrosion resistance. It is the best equipment for pharmaceutical factories, food factories, medical research and other institutions.
Optional accessories:
1.programmable controller
2.individual temperature limit
All technical data is under no load conditions，environment temperature 25℃, relative humidity 50%RH, voltage fluctuation ±10%, Under the conditions of test to Setting up a test temperature 10℃/40℃, And fully comply with the requirements of DIN12880 standard.
