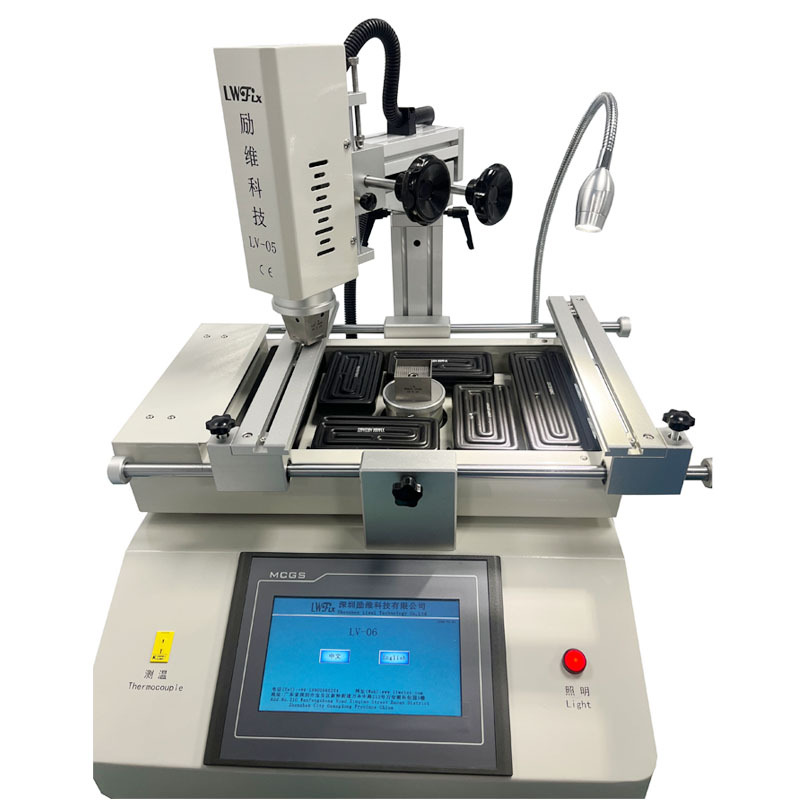

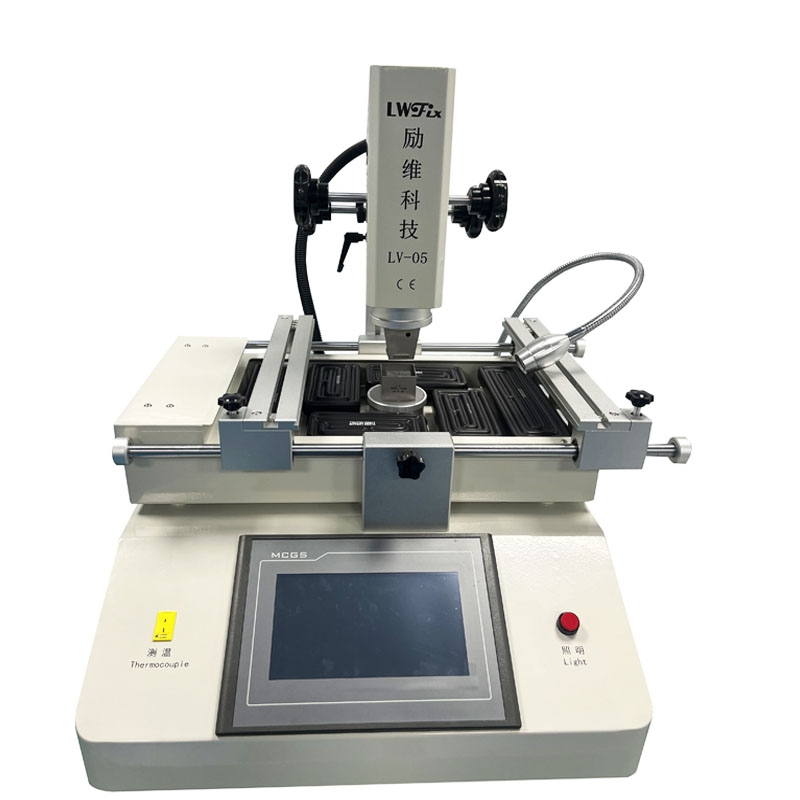

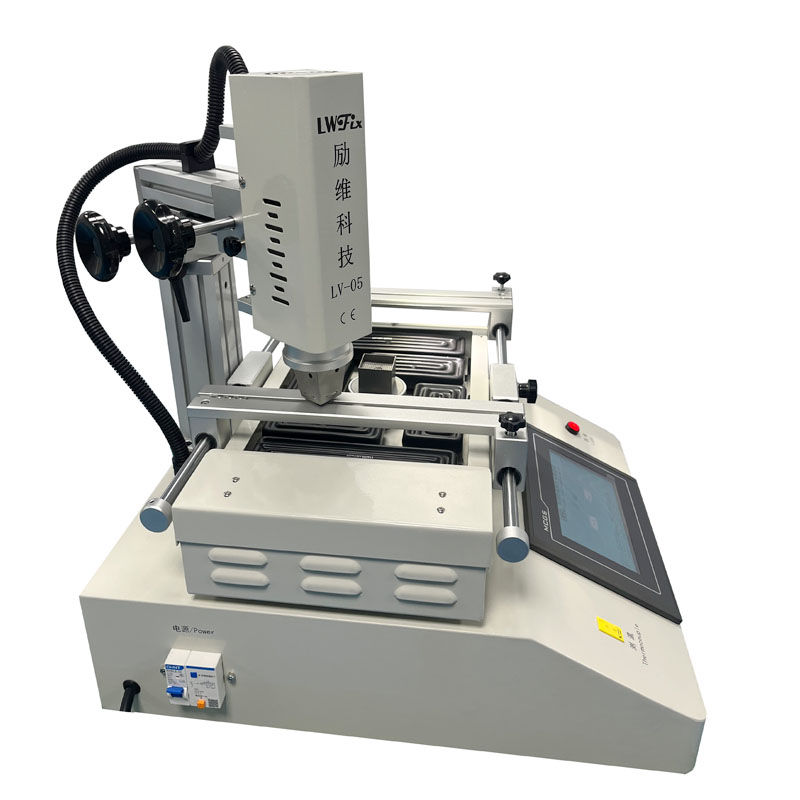

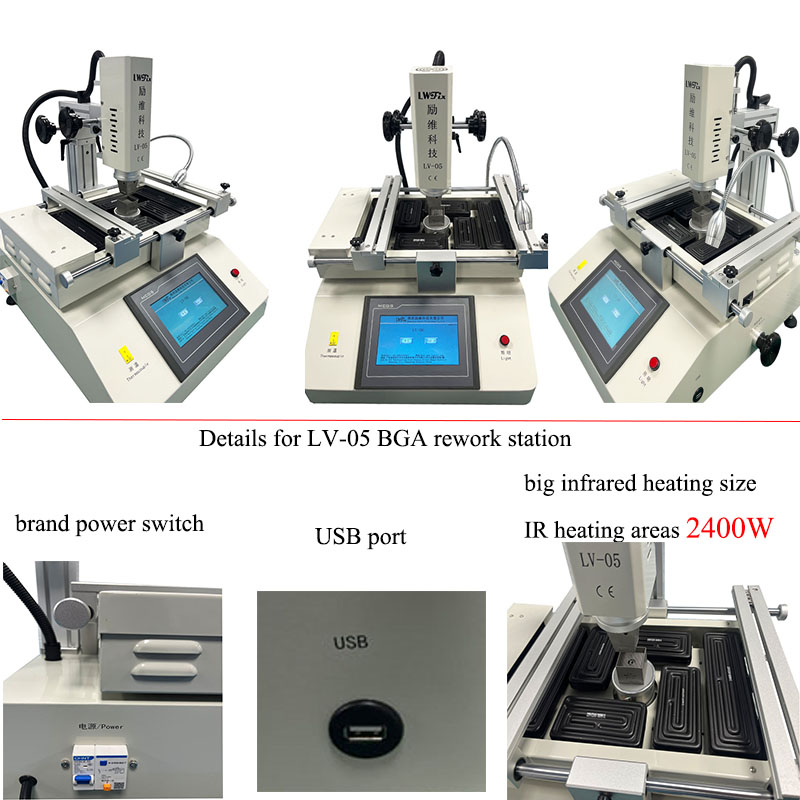

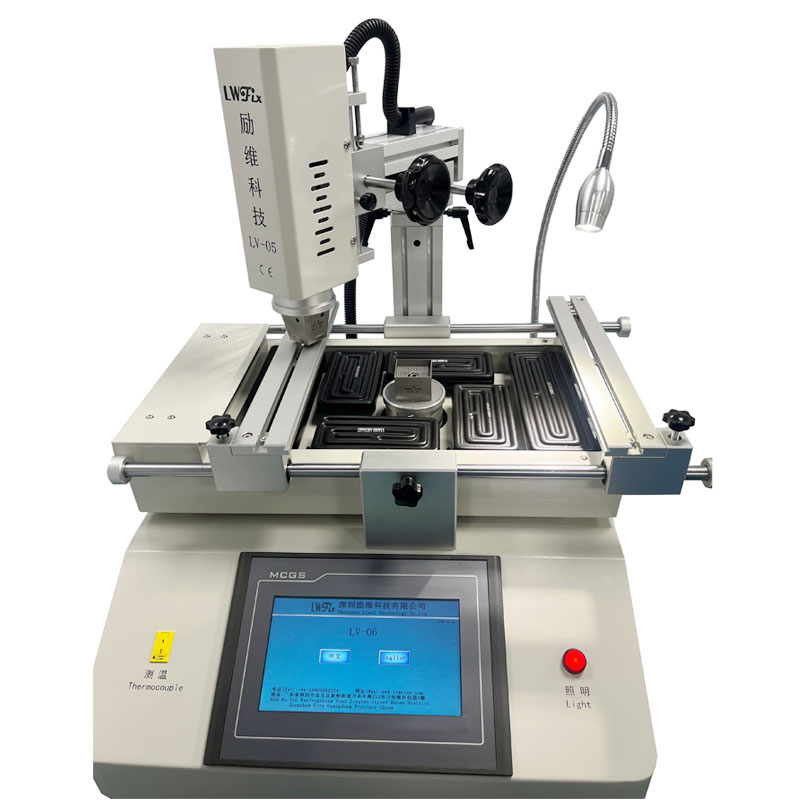

BGA Rework Station LV-05 High precision bga rework station repair laptop machine
|
Total Power |
4800W |
|
Upper Heating Power |
800W |
|
Lower Heating Power |
1200W |
|
Infrared Heating Power |
2400W（1200W is controlled） |
|
Power supply |
(Single Phase) AC 220V±10 50Hz |
|
Location way |
V-shape card slot + Universal jigs+laser position |
|
Temperature Controlling |
K-type thermocouple closed loop control, independent temperature control, precision up to ±3 degree |
|
Electrical Material |
Touch screen + Temperature control module + PLC control |
|
Max PCB size |
330×310mm |
|
Min PCB size |
10×10mm |
|
Sensor |
1 unit |
|
PCB Thickness |
0.3-5mm |
|
Suitable Chip Size |
1*1mm-50*50mm |
|
Size |
500×530×580mm |
|
Weight |
Net 30kg |
